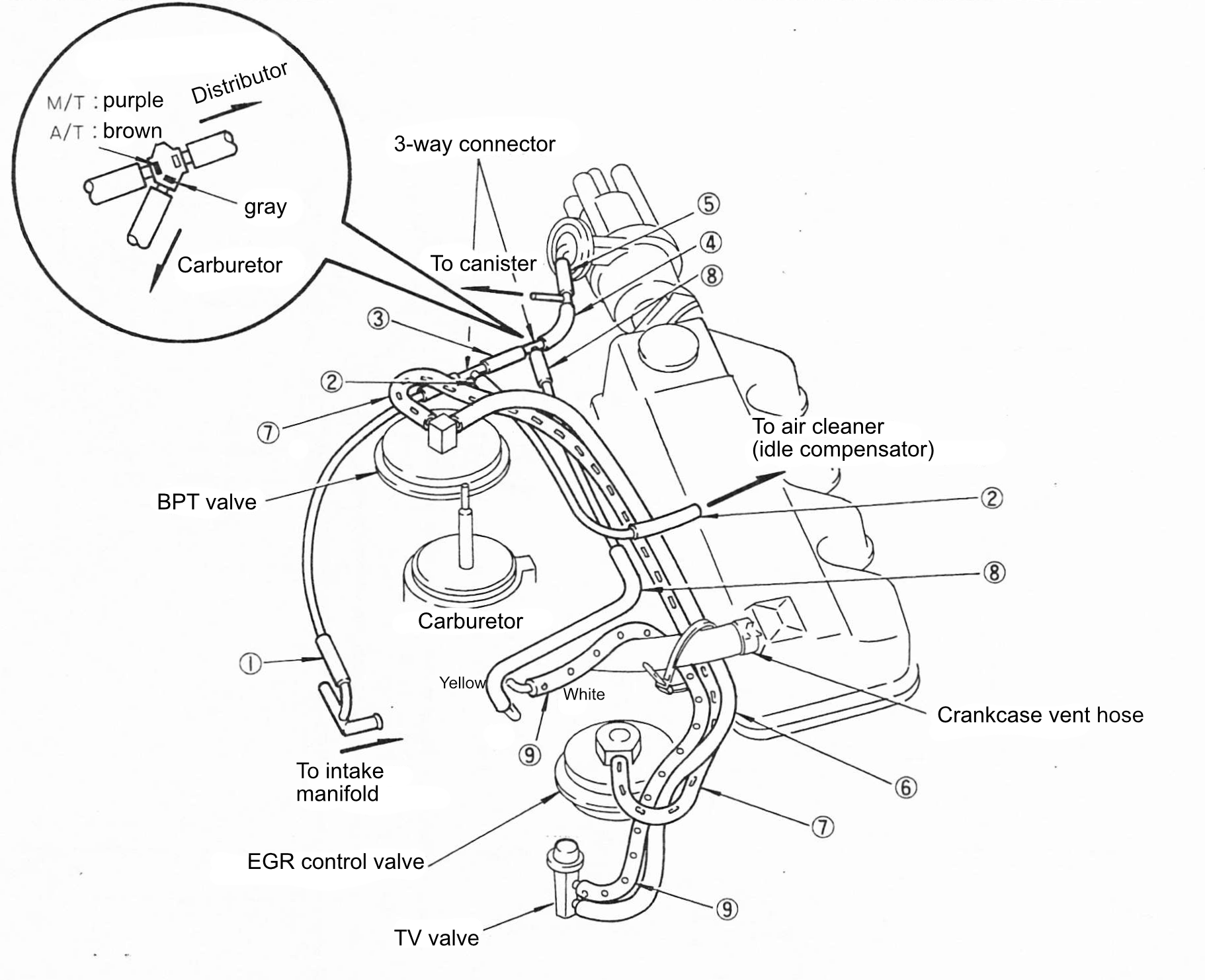

Vacuum hose routing
| Index number | ID color | Length (mm) | Connection |
|---|---|---|---|
| 1 | — | Cut to length | Carburetor ~ 3-way connector |
| 2 | Peach | 225 * | 3-way connector ~ air cleaner |
| 3 | Yellow | 50 | 3-way connector ~ 3-way connector |
| 4 | Yellow | 40 | 3-way connector ~ 3-way connector |
| 5 | Yellow | 40 | 3-way connector ~ distributor |
| 6 | White | 580 | TV valve ~ EGR control |
| 7 | White | 560 | BPT valve ~ EGR control |
| 8 | Yellow | 345 * | 3-way connector ~ Carburetor |
| 9 | White | 370 | Carburetor ~ TV valve |
| * Indicates combined length of vacuum hose and vinyl tube | |||
